Track Clips for Revell Slot car Track
The Problem
When assembling Revell track, there are two major problems:
- Pieces fit too tightly, track is hard to fit together
- Pieces are too loose and come apart easily
Track Pieces are hard to connect
Elbow grease (push harder) is one way to fix this.
Also check out 'Dewann's Tweasers' - some long handle tongs that are available from Harbor Freight
(see Dewann's track cleaning tips)
Track Pieces Come Apart Too easily

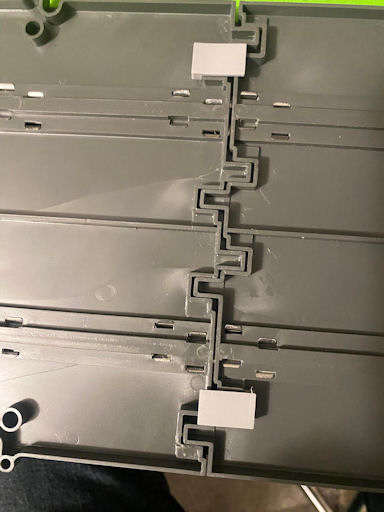

I have designed some track clips that fit in the overlap areas on the underside of the track connection. There are actually 8 different locations (4 pairs) where the tracks join to attach the clips. Here is the underside with two clips pressed into one of the outside locations.

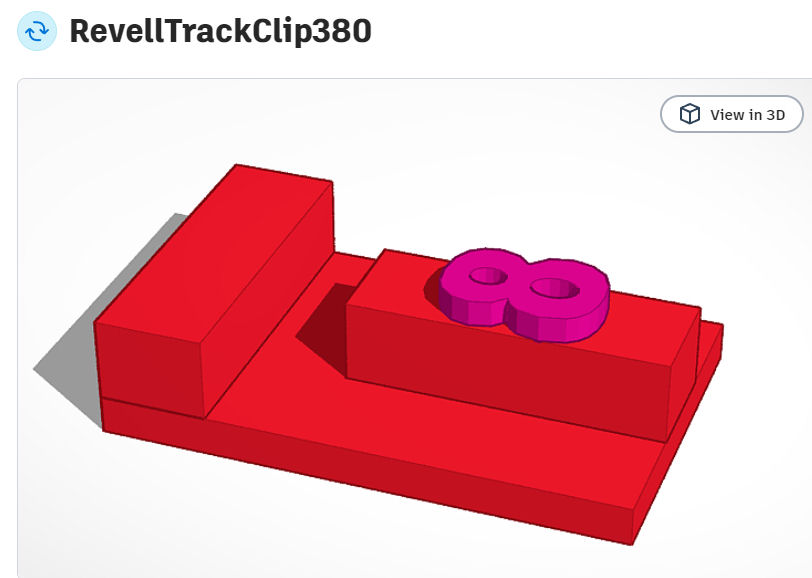

Here is what a single clip looks like (image from Tinkercad)
Since the track pieces don’t always fit together the same, I have 6 different gap sizes. You just choose the one that fits best (snug fit).
| Code | Gap | Color |
|---|---|---|
| 5 | 0.350 cm | red |
| 6 | 0.360 cm | green |
| 7 | 0.370 cm | blue |
| 8 | 0.380 cm | yellow |
| 9 | 0.390 cm | orange |
| o | 0.400 cm | cyan |

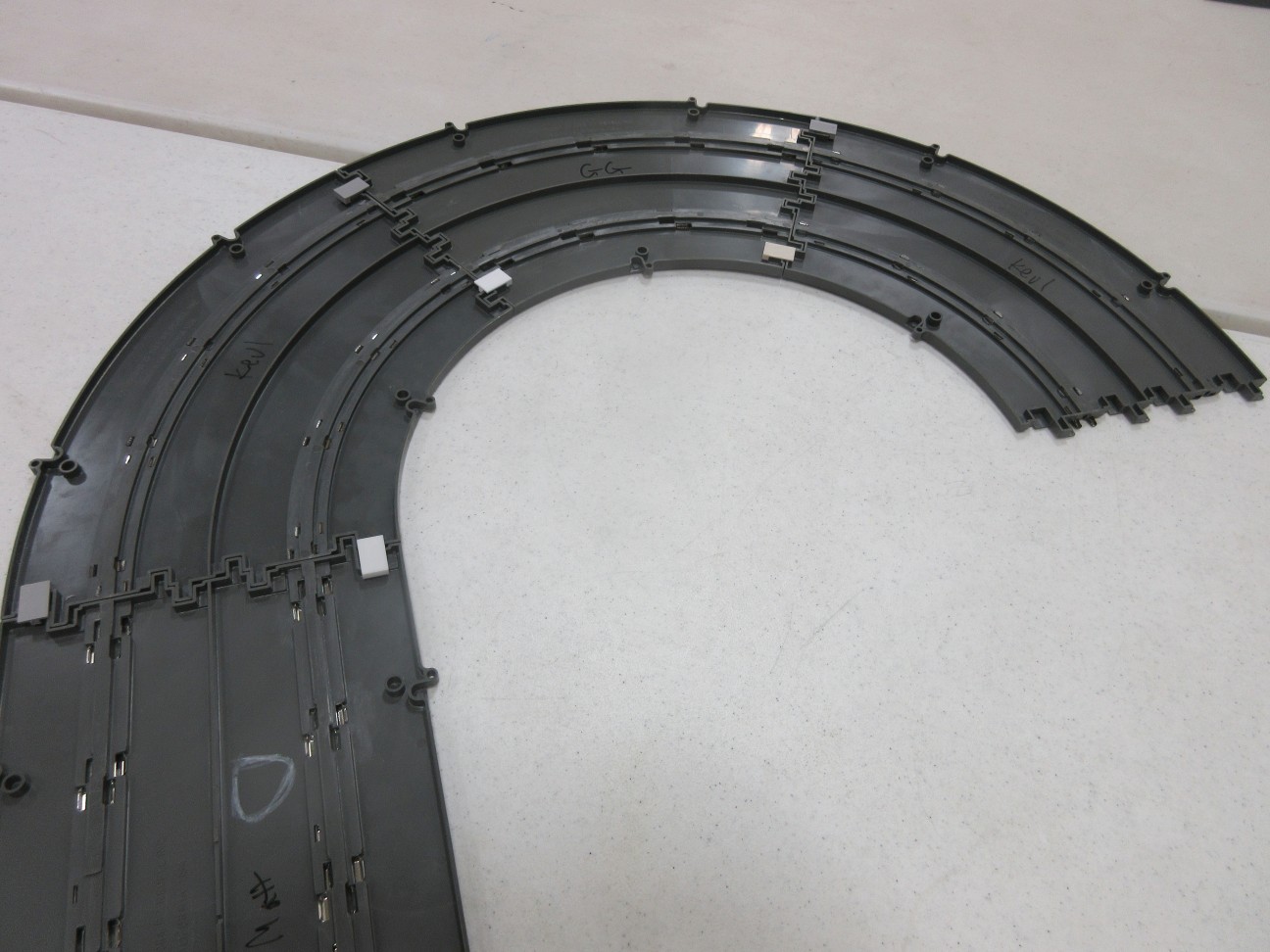

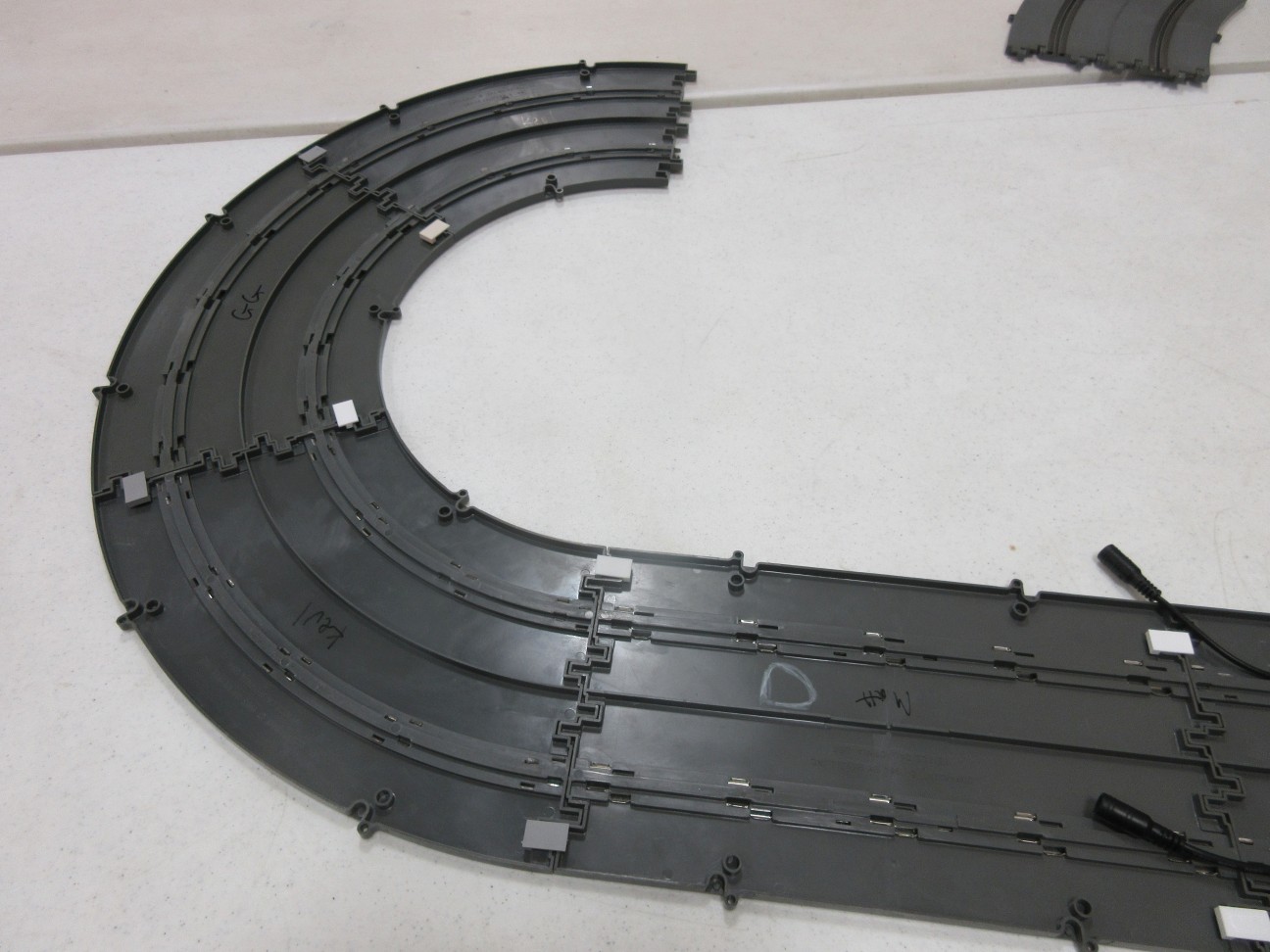

Examples of use:

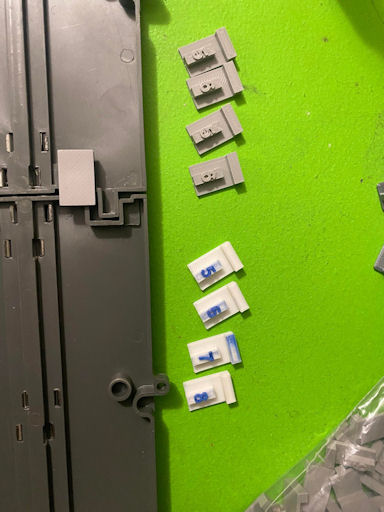

If you have a 3D printer or know someone who does and can print them for you, here are the STL files that you can use to print them: (all 6 in a zip file)
Using your slicer program, you can import all 6 versions and create a set. I usually use 0.12 mm resolution. I have also made projects with 12 or 18 parts at a time.
Currently, I have a project that has 25 of the same gap type and prints them all in the same color. See the chart above for the colors I use.
If you don't have access to a 3D printer, I can send you some that I have printed. Initially, I would send a batch of 150 (25 of each gap type) for $20, including shipping (the bulk of the cost). Other combinations can be bundled as needed.
Send me an email at cgibke@compuserve.com. My PayPal uses that same email address.
